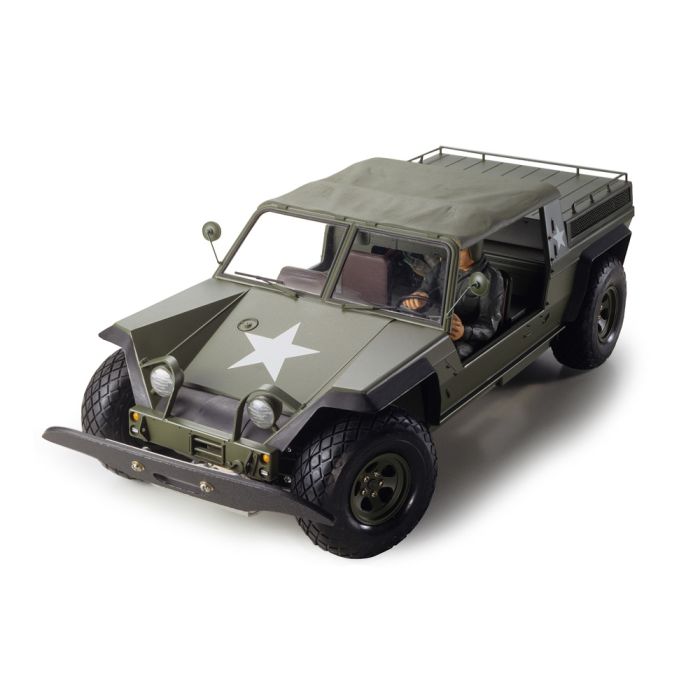

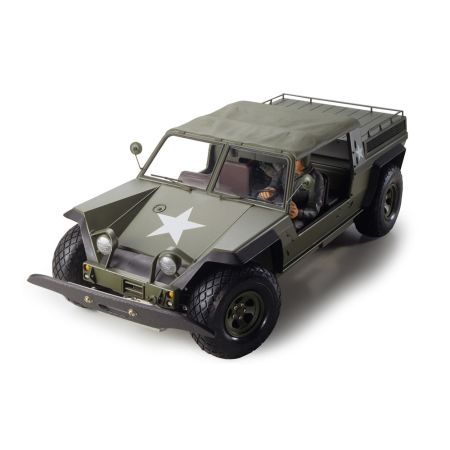

Tamiya XR311 Combat Support Vehicle (THC58004)

This is a re-release version of the 1/12 scale R/C XR311, Tamiya's first R/C model with a suspension system, which was originally released in 1977. While maintaining the basic layout of the original, this re-release version incorporates modern improvements. The injection-molded body captures the vehicle's purposeful look. Interior parts and a driver figure are included for even greater realism.

Refined Chassis Details
The 2WD duralumin chassis frame features a rear-mounted motor rear-wheel drive layout. The battery is positioned down the center of the chassis with the receiver and ESC on either side for exceptional balance. 4-wheel double wishbone suspension features upper and lower H-arms and adjustable metal torsion bar springs. Fully-enclosed gearbox may be assembled with one of three different gear ratios.

• 1/12 Scale
• Length: 400mm, Width: 168mm, Height: 139mm
• Wheelbase: 256mm
• Weight: 1,800g
• Type 540 Motor
• Rear-Wheel Drive
• Tire Width/Diameter: (F/R) 29/77mm
• Tread (F/R): 138mm
• Duralumin Frame Chassis
• 3-Bevel Differential
• 2-piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension with Metal Torsion Bar Springs
• Gear Ratio=9.3:1, 16:1, 21:1

Required To Complete

2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
