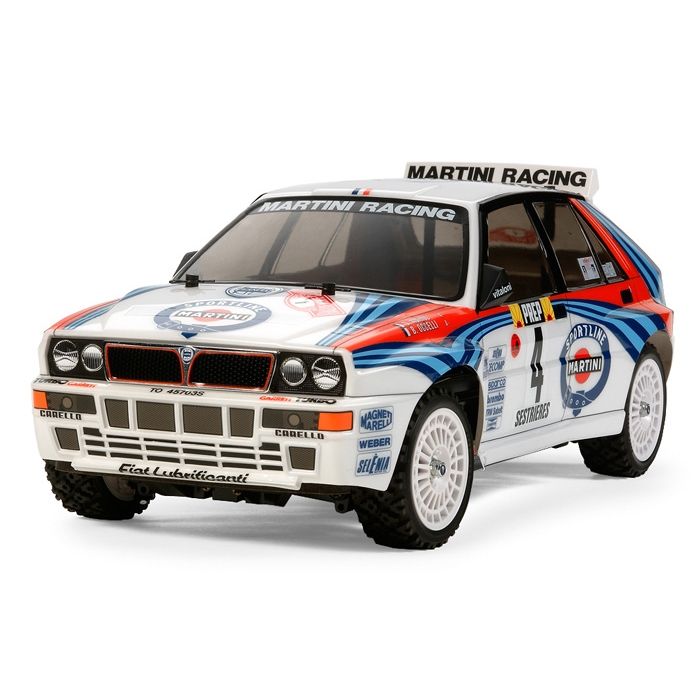

Tamiya Lancia Delta TT-02 (THC58570)

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings (the higher position is used with the Lancia Delta Integrale) and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Specifications

• Length: 407mm, Width: 186mm, Height: 159mm
• Wheelbase: 257mm　
• Tire Width/Diameter (Front and Rear): 27/69mm
• Bathtub-type Frame
• Shaft Driven 4WD
• Front/Rear 4-Bevel Resin Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• Front/Rear Friction Dampers
• Gear Ratio = 9.58:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
• Type 540 Motor
• Electronic Speed Controller included

Required To Complete

2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
