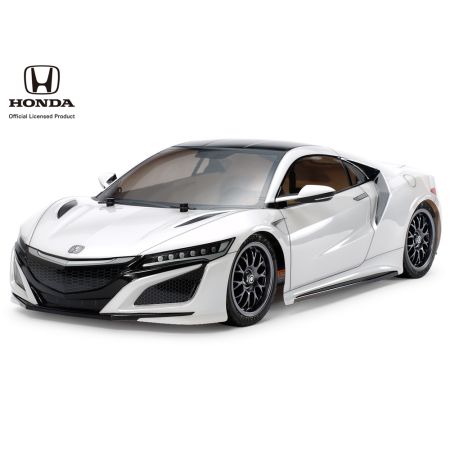

Tamiya Honda NSX 2016 - TT-02 (THC58634)
In stock
- SKU
- THC58634
£123.00
Get a price match
Description / Tamiya Honda NSX 2016 - TT-02 (THC58634)
TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal colour mesh wheels are paired with radial tires.
Specifications
2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal colour mesh wheels are paired with radial tires.
Specifications
- Length: 438mm, Width: 190mm, Height: 124mm
- Wheelbase: 257mm
- Tire Width/Diameter: 27/67mm (Front & Rear)
- Bathtub-type Frame
- Shaft-Driven 4WD
- Front/Rear 4-Bevel Resin Differentials
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Dampers
- Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
- Type 540 MotorÂ
- Electronic Speed Controller included
2 Channel Radio System, 1 Servo's, Battery & Charger, Paint for the Body
