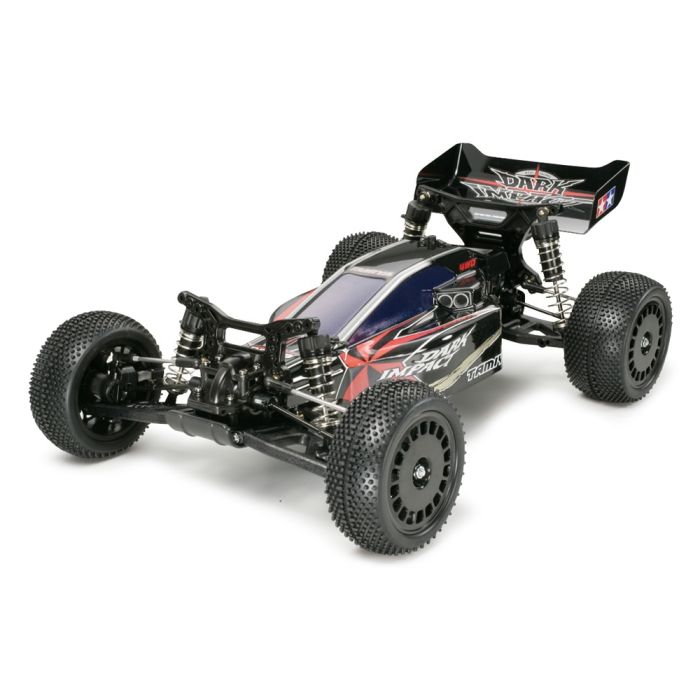

Tamiya Dark Impact 4WD Racing Buggy DF-03 (THC58370)

DF-03: Refined Shaft-Drive 4WD Chassis

Durable monocoque bathtub frame sees the heavy battery and R/C mechanism components mounted low and central for the best vehicle balance. Even the oil dampers are located within the wheelbase for greater stability and cornering performance. Compact gearboxes are equipped with ball differentials, and the propeller shaft directly links to the front bevel gear to decrease power loss during transmission. 4-wheel double wishbone suspension with long suspension arms provides excellent shock absorption, and a variety of attachment positions gives the driver many options when tuning.

Specifications

• Length: 387mm　
• Width: 250mm　
• Height: 145mm　
• Lowest Ground Clearance: 24mm
• Wheelbase: 272mm　
• Weight: Approx. 1156g　
• Tread: (Front) 217mm, (Rear) 203mm　
• Tire Width/Diameter: (Front) 33/87mm, (Rear) 43/87mm　
• Frame: Monocoque
• Drivetrain: Shaft-driven 4WD　
• Diff. Gear: Front/Rear Ball Diff.　
• Steering: 3-piece Tie Rod　
• Suspension: 4-wheel Double Wishbone　
• Dampers: (Front) CVA Damper Mini, (Rear) CVA Oil Damper (Short)
• Motor: Type RS-540

Required To Complete

2 Channel Radio System, 1 Servo's, Electronic Speed Controller, Battery & Charger, Paint for the Body
