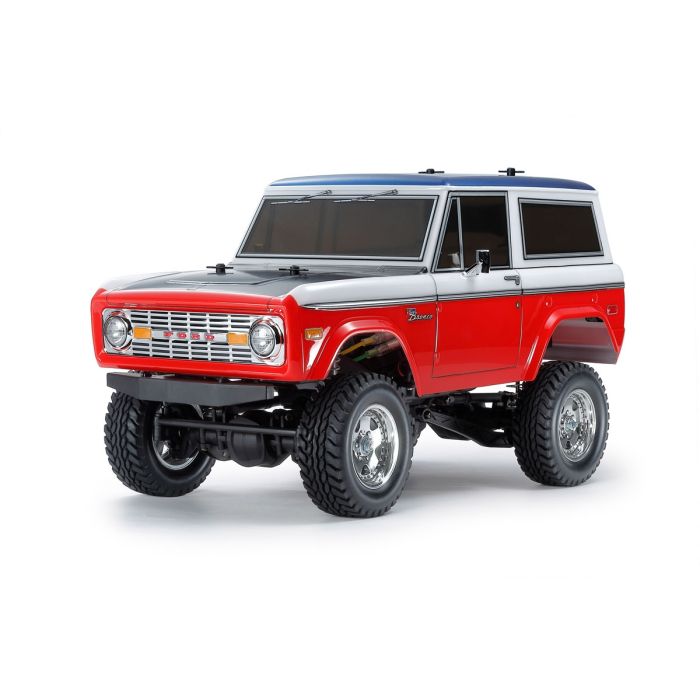

Tamiya Baja Bronco (CC-02) (THC58736)
In stock
- SKU
- THC58736
£266.50
Get a price match
Description / Tamiya Baja Bronco (CC-02) (THC58736)
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black six-spoke wheels and grippy block pattern tires. In this kit, the chassis is assembled with a 242mm wheelbase.
Specifications
2 Channel Radio System, 1 Servo's, Battery & Charger.
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with black six-spoke wheels and grippy block pattern tires. In this kit, the chassis is assembled with a 242mm wheelbase.
Specifications
- Length: 429mm, width: 200mm, height: 215mm
- Wheelbase: 242mm
- Tread: 160mm (front), 163mm (rear)
- Tire width/diameter: 33/90mm (front/rear)
- Ladder frame
- Longitudinal motor, shaft-driven 4WD
- 3-bevel differential gears
- 4-link rigid suspension (front/rear)
- Gear ratio = 17.33:1 (using kit-standard 16T pinion)
- Type 540 motor
2 Channel Radio System, 1 Servo's, Battery & Charger.
