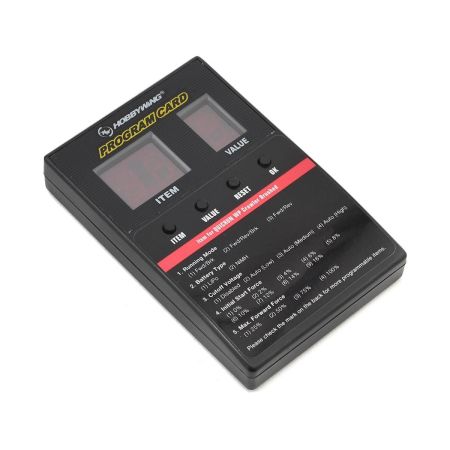

Absima ProgramMLng Box For Crawler 880/Quicrun ESCs (AB2110060)

Programming box for programmaBLe Hobbywing brushed crawler speed controllers
e.g. Quicrun (Sherpa PRO) or WP880 (Yucatan)

ProgrammaBLe Features:
Runing Mode: Forward/Brake / Forward/Brake/Reverse / Forward/Reverse
Battery Type: LiPo / NiMH
Cutoff Voltage: DisaBLe / Low / Medium / High
Initial Start FoRCe: 0% / 2% / 4% / 6% / 8% / 10% / 12% / 14% / 16%
Max Forward FoRCe: 25% / 50% / 75% / 100%
Max Reverse FoRCe: 25% / 50% / 75% / 100%
Max Brake FoRCe: 0% / 12,5% / 25% / 37,5% / 50% / 62,5% / 75% / 87,5% / 100%
Initial Brake FoRCe: 0% / 6,25% / 12,5% / 18,75% / 25% / 31,5% / 37,5% / 43,75% / 50%
Drag Brake: 0% / 5% / 10% / 50% / 60% / 70% / 80% / 90% / 100%
Drake Brake Rate: Level 1 - 9
Neutral Range: 0,02ms - 0,12ms
Start Mode Punch: Level 1 - 9
PWM Frequency: 1k / 2K / 4K / 8K / 16K
BEC Voltage: 6V / 7.4V
Freewheeling: EnaBLe / DisaBLe
