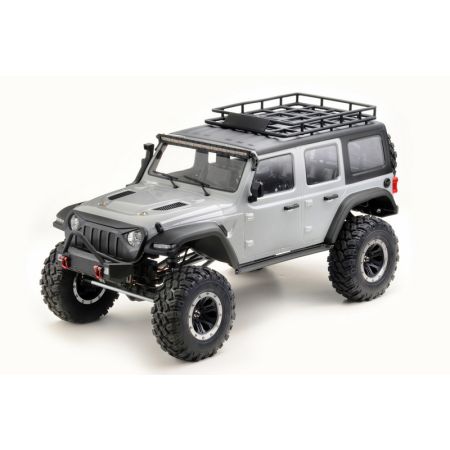

Absima 1:8 Crawler CR1.8 Yucatan - Light Grey RTR (AB13002)
Out of stock
- SKU
- AB13002
£499.99
Get a price match
Description / Absima 1:8 Crawler CR1.8 Yucatan - Light Grey RTR (AB13002)
In addition, there is an 80A speed controller from Hobbywing which is fully programmable (optional program box 2110060). In combination with the larger and more powerful 775 motor, the vehicle reaches a top speed of over 30km/h in 3S LiPo operation. Thus, not only the obstacle, but also the way there is the goal.
Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.
ELECTRONIC SPECS:
https://youtu.be/mZKEKMe67lM
Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.
Oil-filled shock absorbers with 5mm piston rods provide a silky smooth and realistic response. The vehicle comes standard with MEDIUM springs (SOFT & HARD are optional).
If required, a stabilizer set can also be installed which is included in the scope of delivery.
Stylish 2.2-inch beadlock wheels with aluminium rings and 12-bolt design. Super soft tires with realistic sidewall flex for maximum traction on any rock. 12mm aluminium standard wheel hubs fit all standard crawler rims.
DETAILING:
- Towing shackles front/rear
- Rear view mirrors
- Snorkel
- Door fittings set
- 2 Fuel tanks
- High lift jack
- Roof rack with ladder
- Tank filler neck
- Door handles
- Engine hood mount
- License plates
All these functions are combined in the 6-channel receiver. You want to use another 6-channel radio without loosing the lighting function? No problem!
A description how to do you will find in the manual.
- Evil eye hadlights
- Rear lights
- Turn lights (while steering)
- Search lights
- Marker lights
- Hazard warning lights (front & rear)
- Brake lights
- Roof lightbar
- Speed controller (ESC):Â Hobbywing 80A brushed/waterproof with T-plug, programmable, BEC 6V@4A, 2S-3S* LiPo suitable
- Motor:Â 775 "high-torque" brushed motor
- Steering Servo:Â 20kg metal gear, digital &Â waterproof
- Mini Servos:Â 0,9kg, waterproof
- Radio System:Â 6-channel 2.4GHz radio (4.8 - 12.0V LiPo-suitable)
- Length:Â 635mm
- Width:Â 290mm
- Height:Â 300mm
- Ground clearance:Â 95mm
- Wheel base:Â 370mm
- Gewicht:Â 4200g
- Approach angle: 65°
- Departure angle: 48°
- Steering angle: 43°
- Wheels:Â 2.2" Beadlock-Wheels with 12mm Hex-Hub
- Tires:Â 50x132mm including foam inlay
- Shock absorber length:Â 100mm
- Viscosity shock absorber oil:Â 500cps
- Transmission ratio:Â 2-speed (Hi 1/15.1 / Lo 1/37.1), remote controlled
- Gears:Â Modul 0.8/32dp - Pinion 16Z / Main gear 44T
- Drive system:Â 4WD
- Absima CR1.8 YUCATAN RTR
- 6-channel 2.4GHz Radio System
- Manual (DE/ENG/FR)
- Sticker Sheet
- 7.4 LiPo or 7.4VÂ NiMH batteries
- Suitable charger
- 4x AA batteries are required for the radio.
