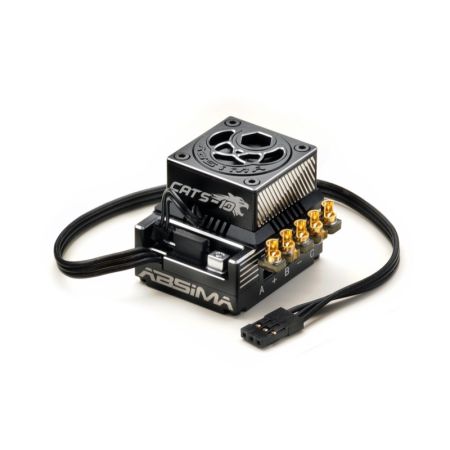

Absima 1:10 Brushless Competition ESC "CATS-10" 160A (AB2110100)

Unleash Ultimate Performance
The CATS-1O ESC delivers high performance and reliable current transmission, ensuring your RC car run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with an Absima motor and battery for the best performance!

Product Core Tech
Super Large 48-degree Boost & Turbo Timing
Increased power output and optimized motor efficiency
Over 33 Adjustable Parameters
Supports various power and drive modes
1/10 High-End Racing ESC

More Product Features
Built-in Super Switching Mode ESC
Support of 6V/7.4V adjustable BEC to adapt to various high power BEC
Built-in Professional Reversing Shutdown
Only enabled in forward with brake and forward and reverse with brake modes
Multiple Protection Functions
Low voltage protection, ESC and motor overheat protection

Specs

• Scale: 1/10
• Mode: Sensor/Sensorless
• Cont. Current: 160A
• Peak Current: 1100A
• Battery: 2S LiPo
• BEC Output V: 6.0/7.4V
• BEC Output Current: 8A Cont. / 12A Peak
• Firmware Upgrade: Supported
• Size: 37.9 x 31.4 x 30 mm
• Weight: 55 g

Basic Information
Compatibility

• Motor: 1/10th TC ≥4.5T; 1/10th off road ≥5.5T
• 1/10 Car Type: TC/Buggy/Truggy/Etc.

Wiring & Cooling

• Output Wires: Black-13AWG-180mmx3
• Input Wires: Red-13AWG-180mm, Black-13AWG-180mm
• Cooling Fan: 25 x 25 x 10 mm, 5.0-8.4V BEC
• Including sensor cables: black – 90mm & 150mm
• Including capacitor board
• Including 3M adhesive pad

ESC Programming Options

• CATS Program Box compatible
