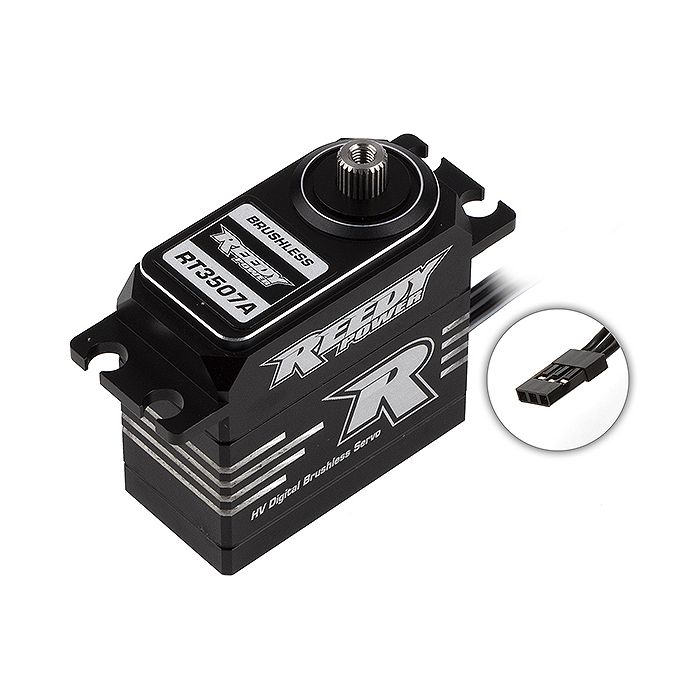

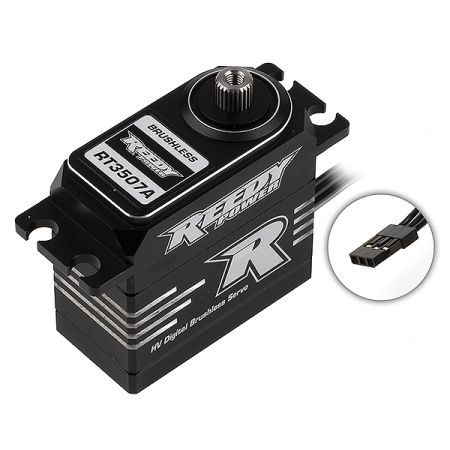

Reedy RT3507A Digital HV Alum. Brushless Competition Servo (AS27117)

Powerful brushless motor for lightning-quick speeds!

Reedy's all-new HV Digital Aluminum Brushless Servos are race proven and feature numerous enhancements including precision metal gears for added strength and smooth operation, a powerful brushless motor for lightning-quick speeds and maximum torque, and an advanced microprocessor that improves vehicle control. Its state-of-the-art CNC-machined aluminum case increases rigidity while lowering operating temperatures for fade-free operation.

Features

• Water and dust resistant
• Full aluminum case
• Powerful brushless motor
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible

Specifications

Input (V): 6.0 - 8.4
Speed (sec/60°), 6.0V: 0.095
Speed (sec/60°), 7.4V: 0.075
Speed (sec/60°), 8.4V: 0.070
Torque (kg-cm), 6.0V: 26.0
Torque (kg-cm), 7.4V: 30.0
Torque (kg-cm), 8.4V: 35.0
Dimensions (mm): 40x 20 x 39.3
Weight (g): 75
Spline: 25
