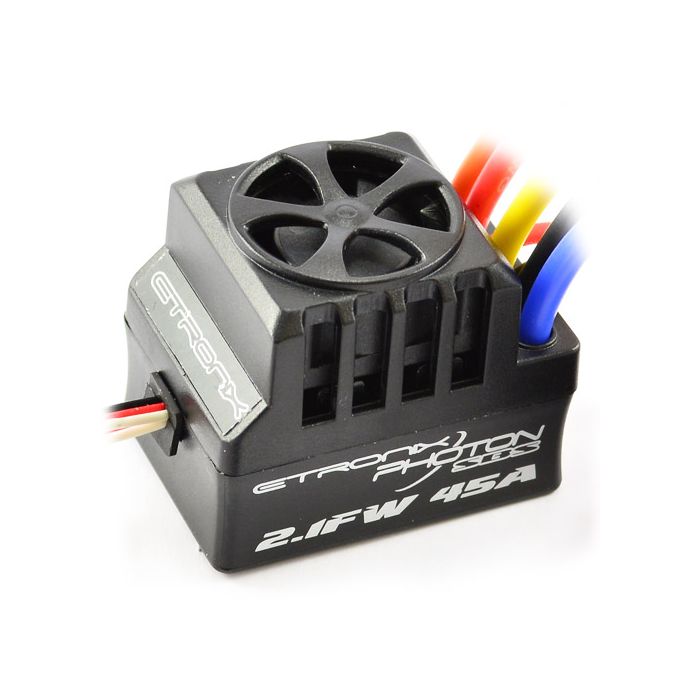

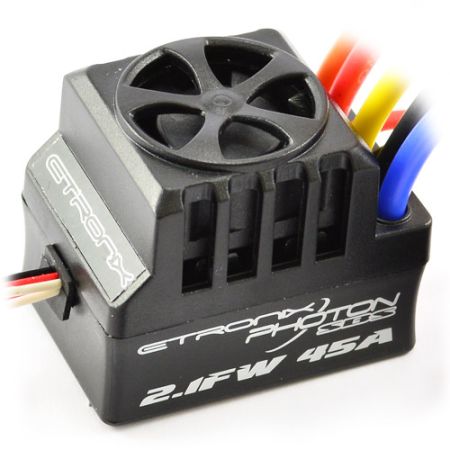

Etronix Photon 2.1FW 45amp Full Waterproof Brushless ESC (ET0128)

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)

When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.

ESC Motor Limit:

• 2S Battery - 4350KV
• 3S Battery - 2950KV
• 4S Battery - Not Compatible

Spec Check:

• 5-10 Cell NiMH/NiCd or 2-3S LiPo
• BEC Output: 6V/2A
• Resistance: 0.0010ohm
• Motor Type: 4 Pole sensorless brushless motor
• Max Continuous Current: 45A
• Burst Current: 260A
• Waterproof: Yes
• Dimensions : 52x38x36mm (without fan)
• Weight : 107g
