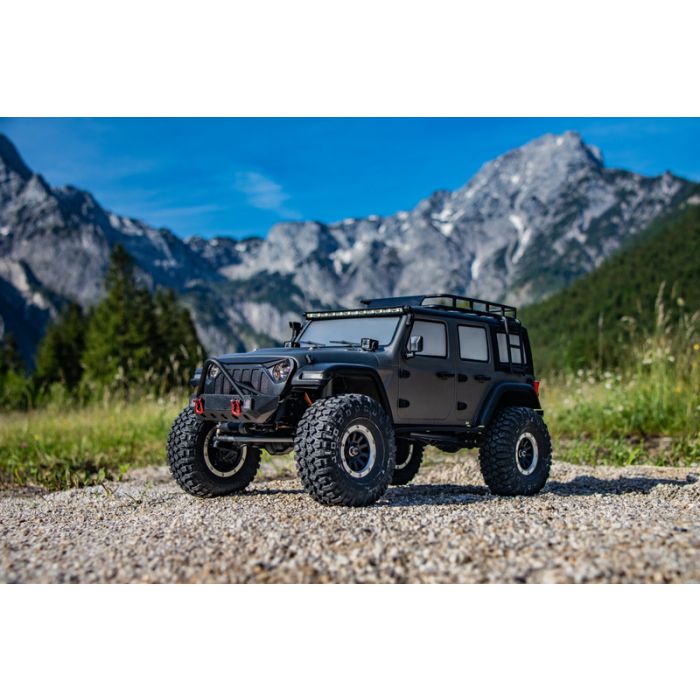

Absima 1:10 Crawler CR3.4 SHERPA Grey RTR (AB12011)
In stock
- SKU
- AB12011
£404.76
Get a price match
Description / Absima 1:10 Crawler CR3.4 SHERPA Grey RTR (AB12011)
A realistic designed 5mm CNC machined aluminium frame with a heavy duty aluminium 4-link suspension system
Oil-filled shock absorbers with internal springs, 5mm piston rods and shock boots provide a silky smooth and realistic response
Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.
VEHICLE SPECS:
ELECTRONIC SPECS:
https://youtu.be/gInEyja_mUg
Oil-filled shock absorbers with internal springs, 5mm piston rods and shock boots provide a silky smooth and realistic response
Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.
VEHICLE SPECS:
- Length:Â 542mm
- Width:Â 250mm
- Height:Â 240mm
- Ground Clearance:Â 53mm
- Wheelbase:Â 313mm
- Weight:Â 2970g
- Approach Angle: 60°
- Departure Angle: 45°
- Steering Angle: 45.8°
- Wheels:Â 12mm Hex Beadlock 1.9" 32x69mm
- Tires:Â 43x120mm
- Shock Length:Â 90mm
- Shock Oil Viscosity:Â 500cps
- Transmission:Â 2-speed (Hi 1/15.1 / Lo 1/37.1), Remote shifting
- Gear Pitch:Â Module 0.8/32dp - Pinion 16T / Spur Gear 44T
- Drive System:Â 4WD Shaft Drive
- Towing shackles front/rear
- Rear view mirrors
- Snorkel
- Door fittings set
- 2 Fuel tanks
- High lift jack
- Roof rack with ladder
- Tank filler neck
- Door handles
- Engine hood mount
- License plates
All these functions are combined in the 6-channel receiver. You want to use another 6-channel radio without loosing the lighting function? No problem!
A description how to do you will find in the manual.
- Evil eye hadlights
- Rear lights
- Turn lights (while steering)
- Search lights
- Marker lights
- Hazard warning lights (front & rear)
- Brake lights
- Roof lightbar
- ESC:Â 60A Brushed/Waterproof with T-plug (BEC 6V@3A, NiMh/LiPo suitable)
- Motor:Â 550 high torque brushed motor 21T
- Steering Servo:Â 9kg MG, digital and waterproof
- Mini Servos:Â 0,9kg, waterproof
- Radio System:Â 6-channel 2.4GHz radio system (4.8 - 12.0V LiPo suitable)
- Absima CR3.4 SHERPA RTR Model
- 6-channel 2.4GHz Radio System
- Sticker Sheet
- Manual (DE/ENG/FR)
- 7.4 LiPo or 7.4VÂ NiMH batteries
- Suitable charger
- 4x AA batteries are required for the radio.
